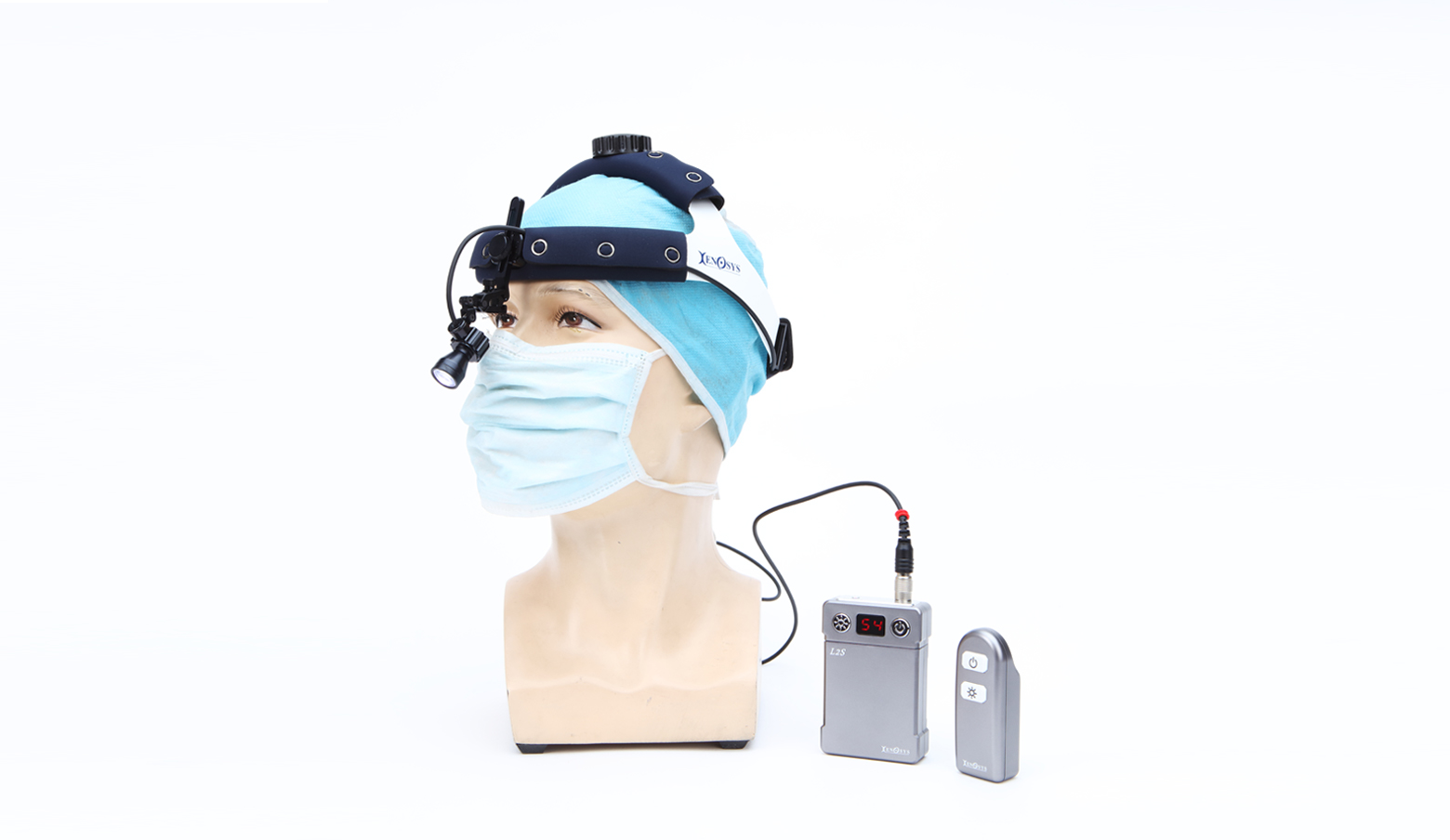

Headlight
Lighting instument to be fixed to the head for use in surgery, diagnosis, etc.
| Brightness | Model | LLM 1582 | LLM 1574 | LLM 1566 | |
| Brightness(lx) [ ± 2000lx ] @ WD400mm | 1st step | 12,000 | 13,000 | 17,000 | |
| 2nd step | 22,000 | 24,000 | 32,000 | ||
| 3rd step | 30,000 | 32,000 | 44,000 | ||
| 4th step | 39,000 | 43,000 | 59,000 | ||
| Field of View(mm) @WD400mm | ∅ 82 | ∅ 74 | ∅ 66 | ||
| Weight(g) | 35.1 | 32.8 | 34.2 | ||
| Color Temperature, Wavelength Range | 6000 K. 400~700nm(Visible) | ||||
| Uniformity | More than 80% @WD400mm | ||||
| LED Operating Power | 2.4W(max.) | ||||
| LED Life Span (Guaranteed Time) | 50,000 hours | ||||
